Z-S-CF40-1216S，Z-S-CF40-1216M，Z-S-CF40-1216L

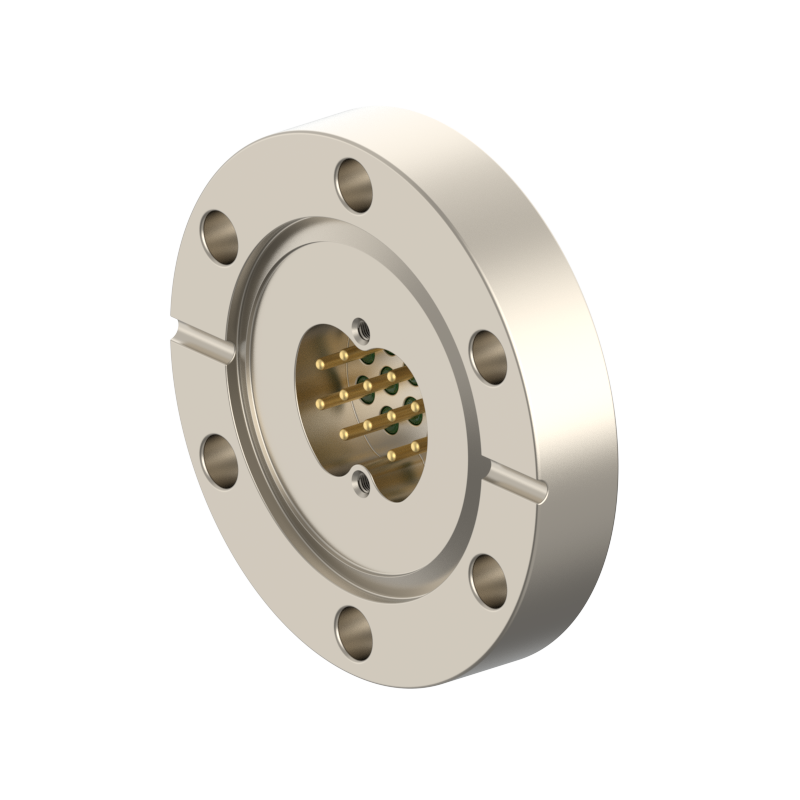

12P pin diameter 1.6mm CF40 flange

Withstand voltage
(between male pin and shell).......... Max 500 VDC (0.5mA)
Rated voltage.................................... Max 110 VDC/70VAC
Current ....................................................... Per pin/All load
Z-S-CF40-1216S............................................... Max 2A/1A
Z-S-CF40-1216M............................................... Max 7A/4A
Z-S-CF40-1216L........................................... Max 13A/7.5A
Helium Leak rate.................................... <1X 10-9Pa*m3/S
Long-term Temperature range......................... -45~+200°C

Download pdf and 3d model

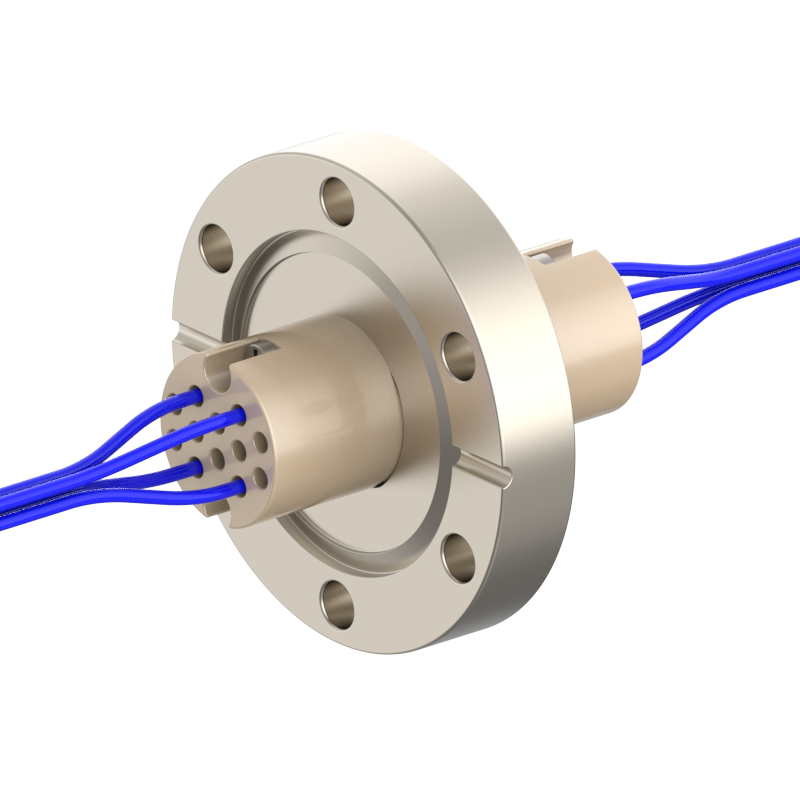

lHuipuVAC S‑series vacuum feedthroughs feature a high‑density multi‑pin layout and are specifically designed for transmitting electrical signals between the interior and exterior of vacuum chambers.

lThe vacuum seal employs a glass‑sintering process that delivers ultra‑high vacuum (UHV) sealing performance.

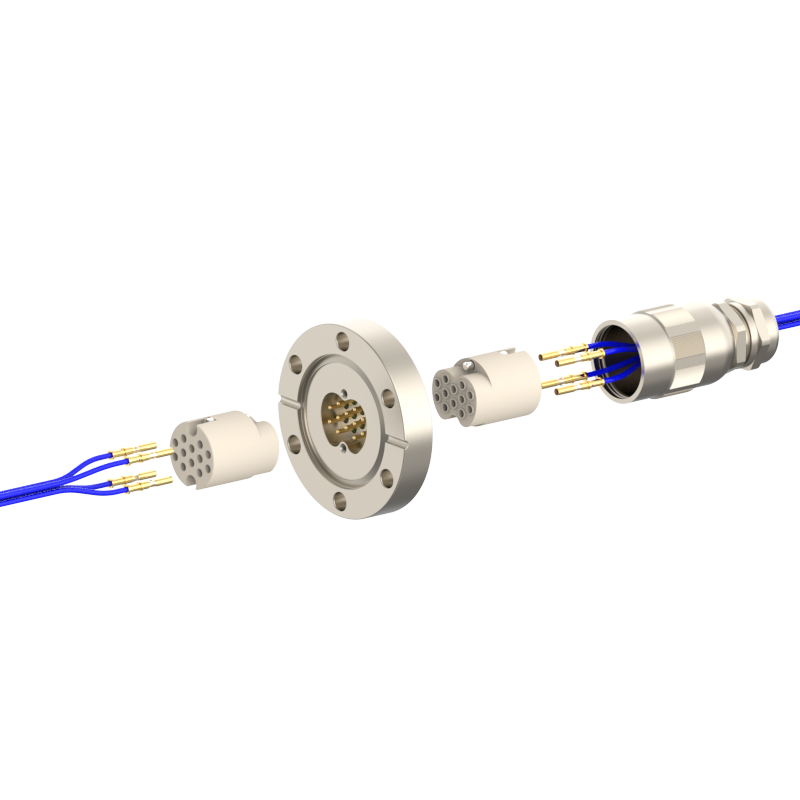

lPlugs are provided on both the vacuum and atmospheric sides, allowing easy plugging/unplugging for simple assembly and wiring. The plugs feature a keyed (polarized) design to prevent misinsertion and are made of low‑outgassing materials, making them suitable for high‑voltage (HV) environments.

lBoth sides are equipped with terminals that feature a rugged, wear‑resistant design, ensuring reliable performance after repeated plugging/unplugging.

lMultiple mounting options are available, and a complete selection of flange interfaces (KF/CF/HF/ISO) is offered for connection to vacuum chambers.

The specifications above are subject to change. For the definitive technical data, please refer to the Huipu Technology Product Manual.

Download : "Huipu Technology Product Manual"
